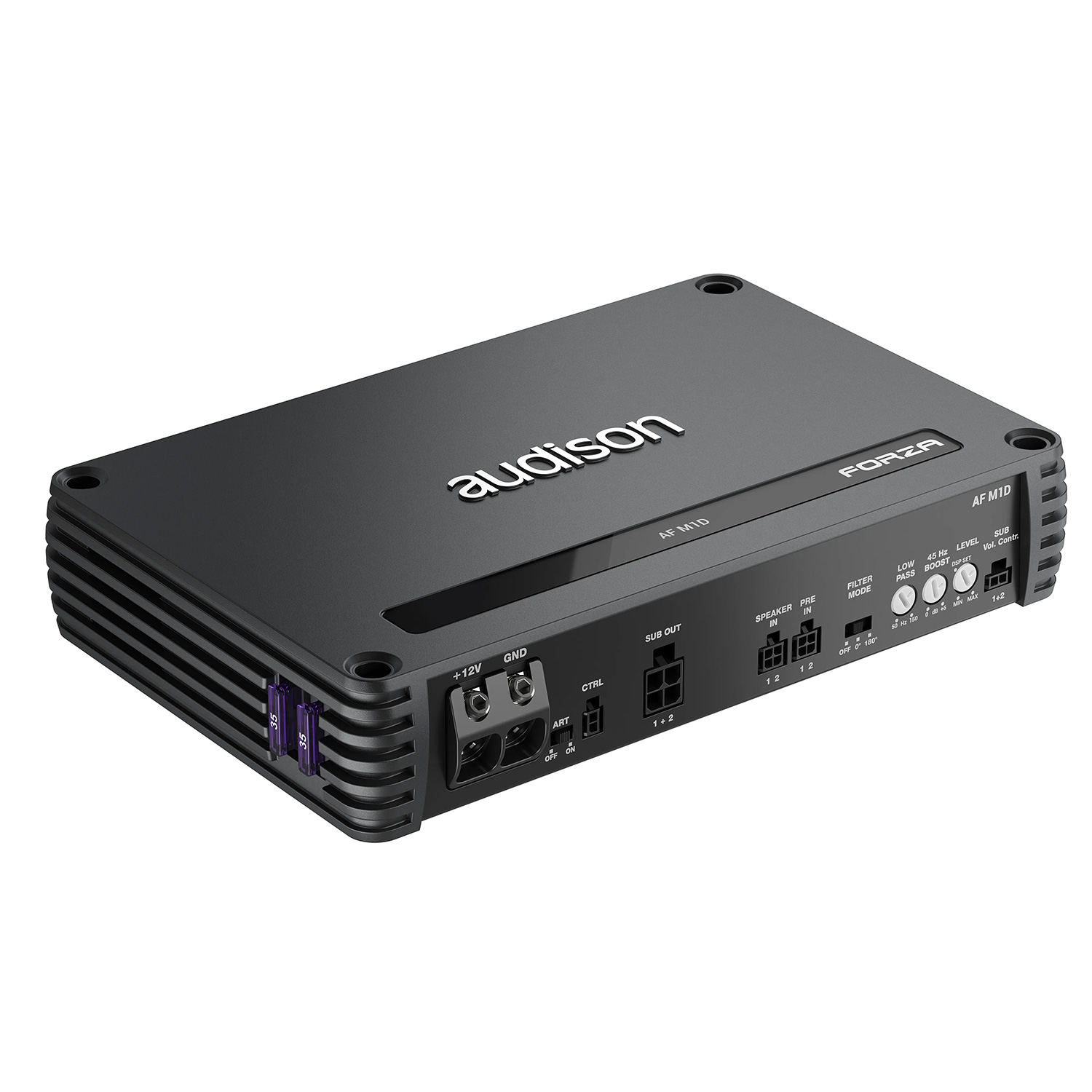

Audison Forza AF M1D 1-Channel Amplifier – 1000W

Description

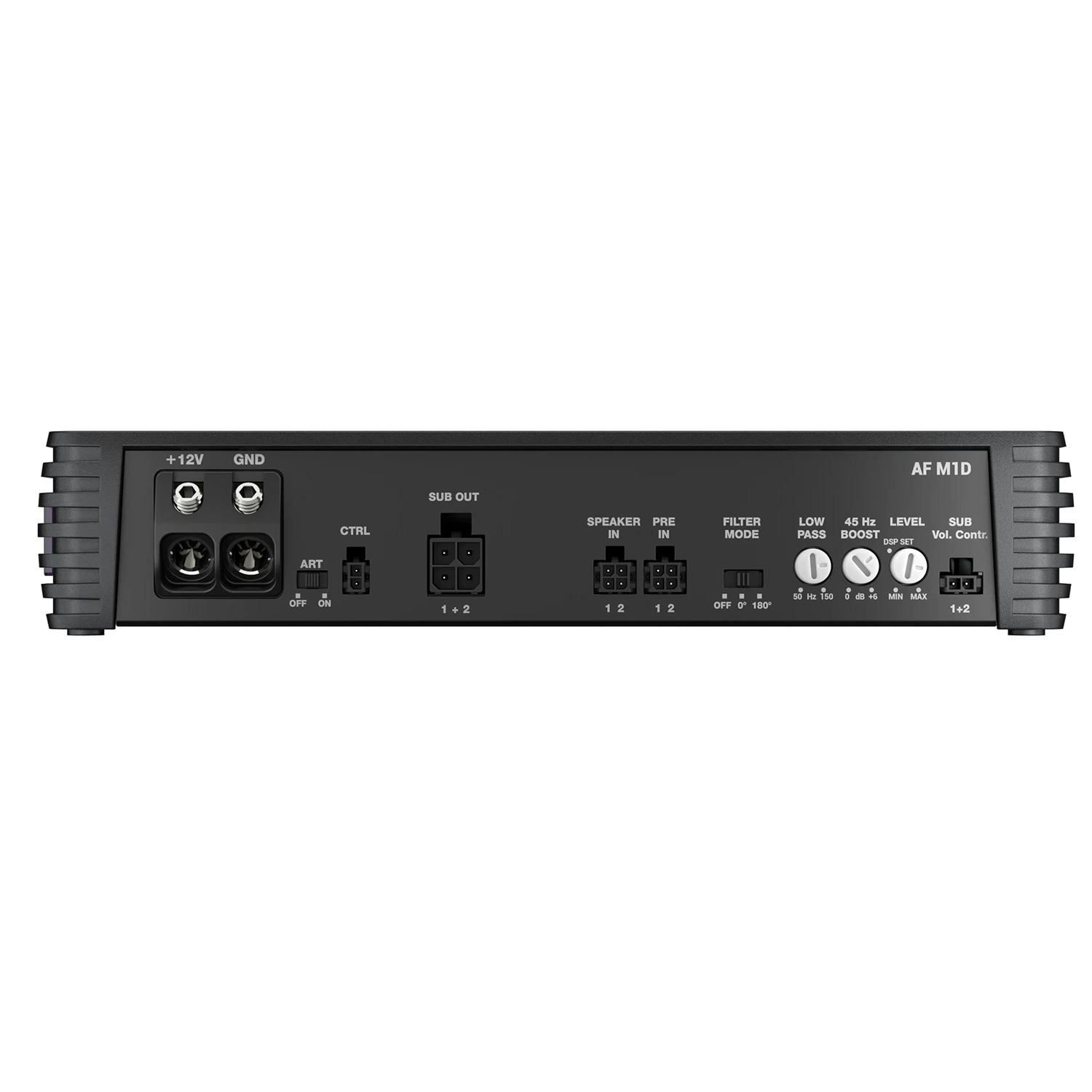

AF D companion amplifiers are designed to add powerful amplifier channels to AF bit amplifiers. A plug-and-play Input harness is included to make the connection to AF bit amplifiers straightforward. AF D amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF M1D boasts one high-fidelity amplified channel 600W @4Ω*, 1000W @2Ω*, and 1200W @1Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! AF M1D is the only one in the AF D family that can be used also in standalone mode, thanks to a set of manual controls: – adjustable (and defeatable) low-pass 4th-order crossover filter – 0-180° polarity/phase switch – 45 Hz Bass Boost adjustment Combine these functions with the ART DC turn-on from high-level Inputs, the USS speaker-input loading, and the optional VCR-S2 level knob, and this amp can be used to add subwoofers even in systems which lack an Audison AF bit amplifier! *Output Continuous Power (RMS) @14.4 VDC, 1% THD, All channels driven.

AMPLIFIER TECH DATA

• Channels 1
• Class D-Class
• Hi Level Input Yes
• Low Level Input Yes
• Digital Input No
• Power supply voltage / fuse 11 ÷ 15 VDC
• Operating power supply voltage 6.5 ÷ 17.5 VDC
• Idling current 1.3 A
• Idling current when off 0.005 mA
• Consumption @ 14.4 VDC, 1Ω, Max Musical Power 65 A
• Remote OUT 6.5 ÷15 VDC (150 mA)
• Remote IN 4 ÷15 VDC (1 mA)
• ART – Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) 1.5 VDC

AMPLIFIER STAGE

• Distortion – THD @ 100 Hz, 4Ω, 70% Rated Power 0.03%
• Bandwidth A (-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 500 Hz
• S/N ratio A (A weighted @ 1 V): 105 dBA
• Damping factor A (100 Hz, 4Ω, 2 VRMS): 125
• Input sensitivity Pre-In 0.6 ÷ 6 VRMS
• Input sensitivity Speaker-In 2.2 ÷ 22 VRMS
• Total Power RMS 1000 W
• Minimum load impedance 1 Ω
• Output Power (RMS) @14.4 VDC, 1% THD 1Ch @ 4Ω: 600 W, 1Ch @ 2Ω: 1000 W, 1Ch @ 1Ω: 1200 W
• Adjustable Crossover Yes

CEA SPECIFICATIONS

• Output power @ 4Ω, 1% THD+N, 14.4 V 600 W
• SN ratio (ref. 1W output) 81 dBA

INPUTS / OUTPUTS

• Input Type Pre-In / Speaker-In
• Filter Pass A Full / Low-Pass 50 ÷ 150 Hz @ 24 dB/Oct.
• Inputs/Outputs Phase (0 ÷ 180 ) deg
• Inputs/Outputs Bass Boost 45Hz (adjustable) – (0 ÷ 6) dB
• Remote Sub Volume ±12 dB

OTHER

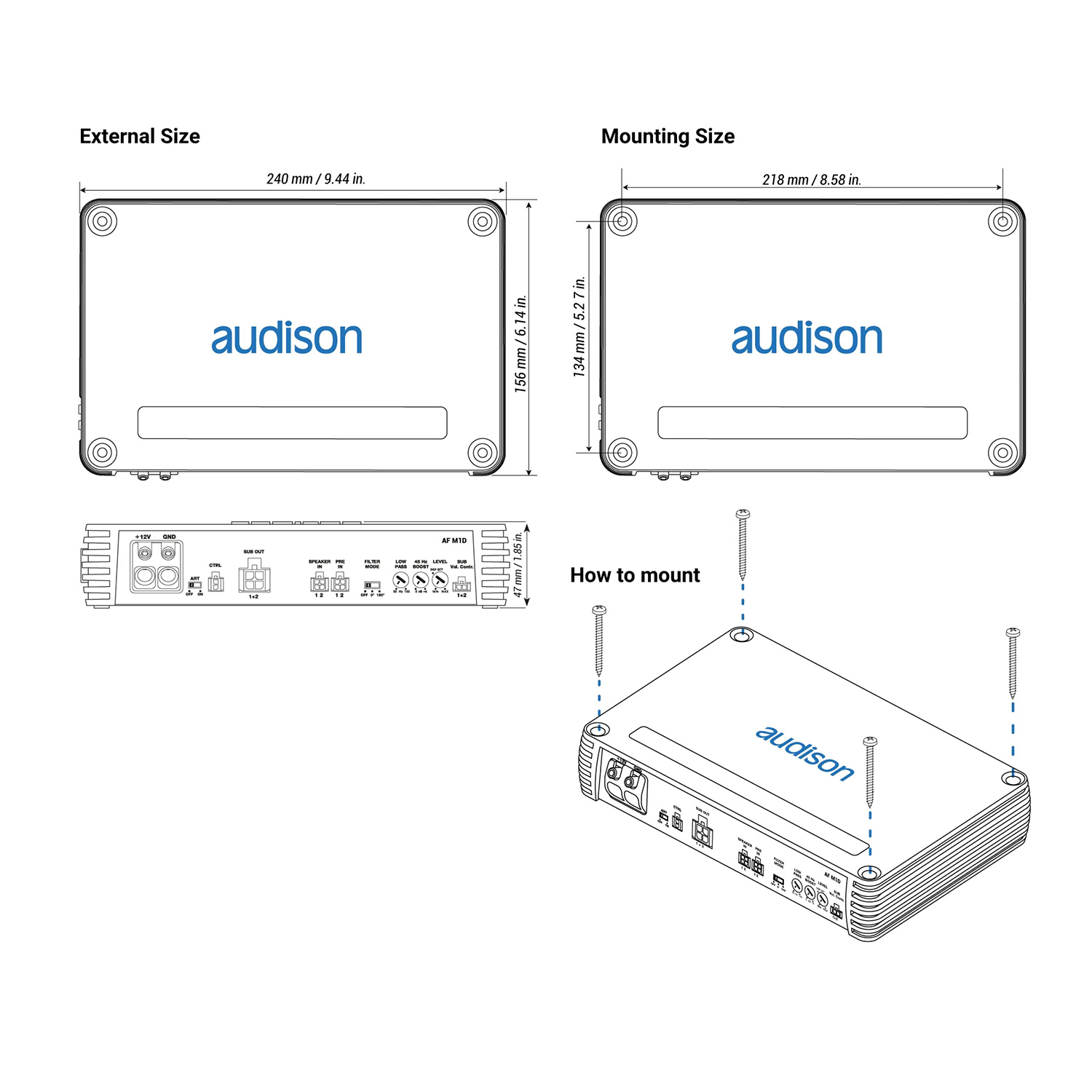

• Weight 1.95 kg
